Memorandum

City of Lawrence

Utilities Department



To:

David Corliss, City Manager

Cynthia Wagner, Assistant City Manager

Diane Stoddard, Assistant City Manager



From:

Bob Brower, Wastewater/Utilities  Field Operations Manager



CC:

Dave Wagner, Director of Utilities

Mike Lawless, Assistant Utilities Director

Beth Krishtalka, Utilities Management Analyst

Mark Hegeman, Utilities Operations Superintendent



Date:

April 27, 2009



RE:

May 11, 2010 City Commission Agenda

Approve Chemical Root Control Contract Renewal/Bid# B09034



Please include the following item on the City Commission agenda for consideration at the May 11, 2010 meeting.



Bid# B09034 - Approve 2010 Chemical Root Control Contract Renewal with Dukes Root Control, Inc



History:

The purpose of the program is to apply chemical root control agent to sanitary sewers in order to kill the root growth present in the lines and to inhibit re‑growth without permanently damaging the vegetation producing the roots.



The Utility Department began the Root Control Program in 1998. The treated sanitary sewer line segments have a 2-year warranty against root re-growth. The vendor will re-apply treatment if roots re-grow in the line during the warranty period at no additional cost to the city. The selected sanitary sewer line segments in each year’s project are retreated every 3rd year as part of the Root Control Program.



Sanitary sewer line segments are selected for root control on the basis of several factors.  These factors include:



·         Blockages caused by root infiltration

·         TV inspection

·         Maintenance records

·         Age of pipe

·         Pipe material

·         Above ground conditions (trees)



On June 16, 2009 bids were opened for the 2009 Root Control Program. Two vendors bid on the project, Ace Pipe Cleaning and Duke’s Root Control, Inc. The bid provided for four (4) annual renewals beyond the initial contract year. The bid submitted by Ace Pipe Cleaning is considered unresponsive as it did not meet the criteria specified in the bid documents nor did they respond to all elements requested in the bid proposal.



The City bid specifications required bid prices for pipe sizes from 8-inch through 24-inch, a 5% Bid Bond and a minimum of three (3) Kansas certified pesticide applicators. The bid submitted by Ace Pipe Cleaning did not provide prices on any line sizes larger than 8-inch, did not include a bid bond and only provided one (1) Kansas certified pesticide applicator. The City specification required the root chemical to be Razorooter II or equivalent product rated Group “E” on the USEPA Chronic Exposure Rate Scale. Chemical products containing the active ingredient metam sodium are specifically prohibited due to a USEPA Group “C” rating. Metam sodium has also been responsible for disruption of the biological process in wastewater treatment plants. The bid provided by Ace was for the use of the chemical Sanafoam Vaporooter II. The active ingredients in Sanafoam Vaporooter II are metam sodium and dichlobenil both Group “C” chemicals. See the following table for a comparison of the products.



Root Control Chemical Comparisons



Razorooter II

Sanafoam Vaporooter II

Active Ingredient Concentration

(according to the EPA label)

Contains 37.3% diquat dibromide

(diquat) in a water-based concentrate that is highly soluble in water for easy mixing



Contains 30% metam sodium

(metam) water based concentrate and 50% dichlobenil wettable powder

EPA Carcinogenicity Classification

USEPA Group E – Evidence of non-carcinogenicity for Humans

Metam: USEPA Group C – Possible Human Carcinogen

Dichlobenil: USEPA Group C – Possible Human Carcinogen



Chemical Stability

Non-volatile liquid concentrate that is highly soluble in water for easy mixing

Metam will degrade when diluted with water to methyl isothiocyanate (MITC), a moderate poison, and/or to hydrogen sulfide, a highly poisonous gas

EPA Acute Toxicity Classification Signal Word

Category 2: Warning

Category 1: Danger

(due to acute toxicity)



EPA Restricted Use Pesticide

No

Yes, due to acute toxicity



Non-Target Effects

Diquat is a contact herbicide that binds quickly and strongly to the target roots, organic material and clay, sand and silt particles in wastewater. This greatly minimizes diquat effects to beneficial microorganism populations important in the degradation process of dead root tissue

Metam acts a biocide by killing all live organisms within the treated sections of sewer pipe, including beneficial microorganisms important in the degradation process of dead root tissue.





Duke’s Root Control, Inc met all specifications. Duke’s Root Control has been the successful bidder since 1998. The 2009-2013 bid prices submitted by Duke’s are the same cost per foot as bid in the 2006 – 2008 root control program.



The bid tabulation is in the following two tables.
Duke’s Root Control, Inc



Pipe Size

2009

Unit Price Per Linear Foot

2010

Unit Price Per Linear Foot

2011

Unit Price Per Linear Foot

2012

Unit Price Per Linear Foot

2013

Unit Price Per Linear Foot



Footage



8 inch



$1.29

$1.29

$1.29

$1.29

$1.29

68,635

10 inch



$1.76

$1.76

$1.76

$1.76

$1.76



12 inch



$1.92

$1.92

$1.92

$1.92

$1.92

5,091

15 inch



$2.73

$2.73

$2.73

$2.73

$2.73



18 inch



$3.97

$3.97

$3.97

$3.97

$3.97



24 inch



$6.35

$6.35

$6.35

$6.35

$6.35





Ace Pipe Cleaning

Pipe Size

2009

Unit Price Per Linear Foot

2010

Unit Price Per Linear Foot

2011

Unit Price Per Linear Foot

2012

Unit Price Per Linear Foot

2013

Unit Price Per Linear Foot



Footage



8 inch



$0.93

$0.96

$1.00

$1.03

$1.06

68,635

10 inch



No bid

No bid

No bid

No bid

No bid



12 inch



No bid

No bid

No bid

No bid

No bid

5,091

15 inch



No bid

No bid

No bid

No bid

No bid



18 inch



No bid

No bid

No bid

No bid

No bid



24 inch



No bid

No bid

No bid

No bid

No bid





Program Status:

The Utilities Department implemented a Chemical Root Control Program in 1998. The program is very successful in reducing root growth in city mains which aids in preventing root blockages thus reducing backup calls and sanitary sewer overflows and improving customer service.



Project Funding:

Funding for the 2010 Chemical Root Control Program will come from the 2010 Collection System Operations and Maintenance budget: 501-7410-584-2538.



Action Request:

Utilities Department staff recommends approval from the City Commission to authorize the City Manager to execute a contract agreement and purchase order with Duke’s Root Control, Inc in the amount of $98,313.87 to treat 68,635 feet of 8 inch pipe and 5,091 feet 12 inch for the 2010 Chemical Root Control Program.



Thank you for your assistance.  Please advise if you have any questions.



 cc:

David Corliss

Mike Lawless





Cynthia Wagner

Diane Stoddard

Bobbie Walthall

Alan Landis





Dave Wagner

Jonathan Douglass

Mark Hegeman

Beth Kristalka

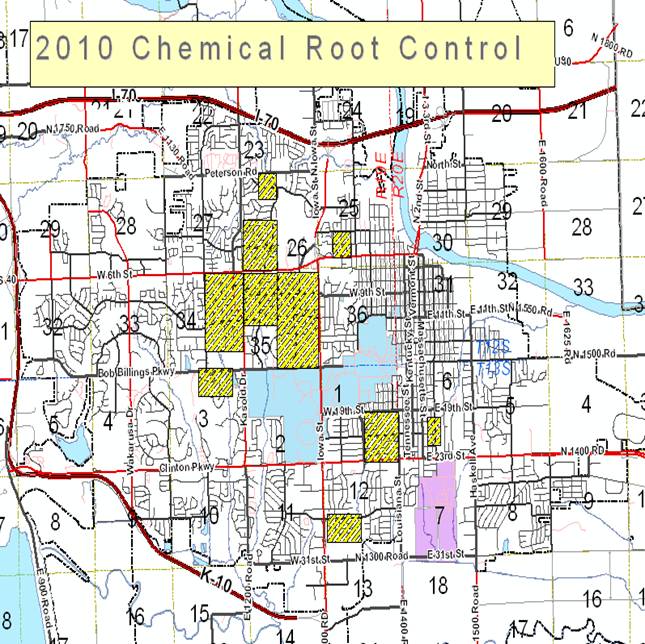

Project Map Area

(Treatment areas marked by yellow box)
