AIRPORT

Lawrence Municipal

LOCAL PRIORITY



UPDATED

In what FY do you want to construct?

02/09

WORK ITEM

CAPITAL IMPROVEMENT PROGRAM, FY2009 – FY2017

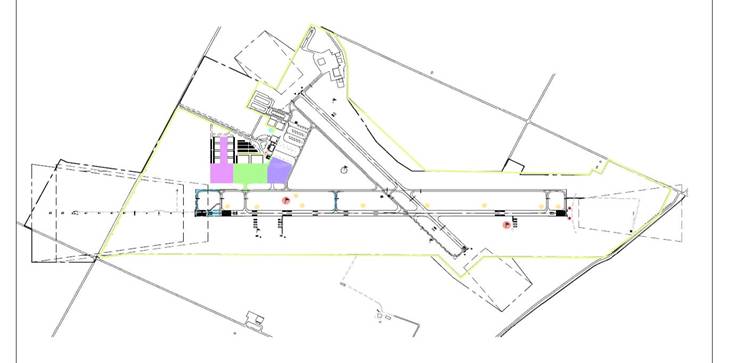

SKETCH:

JUSTIFICATION:

Lawrence Municipal Airport is a general aviation facility located approximately three miles north of the central business district of Lawrence, Kansas. It is about one mile east of the Kansas River and one mile north of Interstate 70. Access to the airport is via U.S. Highway 24/40. The airport currently has approximately 85 based aircraft, two of which are business jets and six are multi-engine. Approximately 40,000 total annual aircraft operations occur at the airport. The airport currently has two paved runways. Primary Runway 15-33 is 5,700 feet long and 100 feet wide. It is served by a Category I precision instrument landing system (ILS) and medium intensity approach lighting system with runway alignment indicator lights (MALSR) on Runway 33. Secondary Runway 1-19 is 3,900 feet long and 75 feet wide. It has only visual approaches. The runways are served by taxiway systems leading to aircraft parking areas and the airport building area. To accommodate current and projected aviation demand in the Lawrence Municipal Airport’s service area and upgrade the facility to current FAA design standards, the following Capital Improvements Plan is recommended

Text Box: Sponsor Signature: Date: COST ESTIMATE: 2009 Acquire Land for Approaches 250,000 2010 Airport Master Plan Update 150,000 2011 Taxiway 1/19 Expansion/Completion (NE) 412,250 2012 Install REILS for Runway 15 and Wind Cones for Runway 15-33 65,000 2012 Install Airport Signage for Part 139 and Jet Operations 135,000 2013 Rehabilitate Runway 15/33 2,000,000 2014 East Apron Expansion Phase I (20,000 S.Y. +/-) 2,310,000 2015 Equipment Storage Building, SRE and ARFF Equipment 715,000 2016 East April Expansion, Phase II (15,000 S/Y. +/-) 1,910,000 2016 Environmental Assessment for Runway Extension 75,000 2017 Extend Runway 15-33 (400’ x 100’) and Taxiway A (400’ x 35’) 2,750,000 Future Expand Aircraft Parking Apron (Phase III) (15,000 S.Y.) 1,925,000 Future Install Airport Perimeter/Security Fencing 600,000
